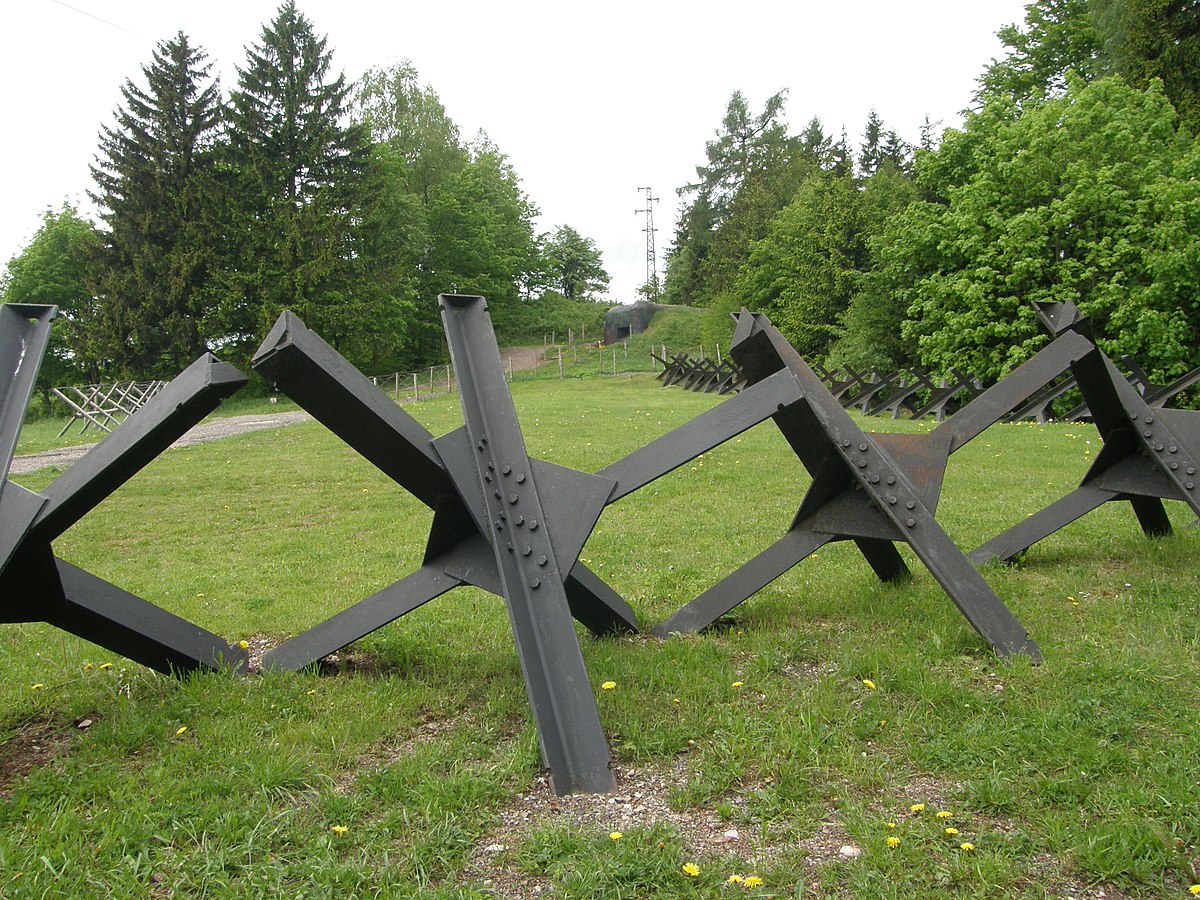

The Czech hedgehog (Czech: rozsocháč or ježek) is a static anti-tank obstacle defence made of metal angle beams or I-beams (that is, lengths with an L- or Ɪ-shaped cross section).
The hedgehog is very effective in keeping light to medium tanks and vehicles from penetrating a line of defence; it maintains its function even when tipped over by a nearby explosion. Although Czech hedgehogs may provide some scant cover for attacking infantry, infantry forces are generally much less effective against fortified defensive positions than mechanised units.
World War II
The Czech hedgehog’s name refers to its origin in Czechoslovakia. The hedgehogs were originally used on the Czech-German border by the Czechoslovak border fortifications – a massive but never-completed fortification system that was turned over to Germany in 1938 after the occupation of the Sudetenland as a consequence of the Munich Agreement.
The first hedgehogs were built of reinforced concrete, with a shape similar to later metal versions. However, the concrete hedgehogs proved ineffective during tests as they could be substantially damaged by machine-gun fire. Once they were fragmented, the debris provided more cover for the enemy infantry than did their metal counterparts. Therefore, only the oldest sections of the Czechoslovak defensive line, built in 1935-1936, were equipped with concrete hedgehogs, and usually only in the second line.
The Czech hedgehog was widely used during World War II by the Soviet Union in anti-tank defence. They were produced from any sturdy piece of metal and sometimes wood, including railroad ties. Czech hedgehogs were especially effective in urban combat, where a single hedgehog could block an entire street. Czech hedgehogs thus became a symbol of “defence at all costs” in the Soviet Union; hence the memorial to Moscow defenders, built alongside the M-10 highway in 1966, is composed of three giant Czech hedgehogs. Czech hedgehogs were part of the German defences of the Atlantic Wall. During the invasion of Normandy, the Allies cut up sizable numbers of intact and wrecked hedgehogs and welded them to the front of their M4 Sherman and M5 Stuart tanks. Known as Rhino tanks, these proved very useful for clearing the hedgerows that made up the bocages across Normandy.
Post-war tests conducted by the Czechoslovak army proved the low efficiency of the metal hedgehogs against heavy armoured vehicles such as the Soviet ISU-152 and T-54 or German Panther. As many as 40% of attempts at breakthrough were successful; therefore the army developed new anti-tank obstacles for the border fortifications instituted during the Cold War. Nevertheless, the metal hedgehog was used as a quick road-block against wheeled vehicles.
In early 2022, during the Russian invasion of Ukraine, hedgehogs were used in conjunction with concrete barriers and other techniques to thwart Russian forces. The Ukrainian Railways repurposed new tracks to make hundreds of hedgehogs at 33 of its own shops and some other sites. The railroad estimated they had enough material for some 1800 hedgehogs. The Ukrainian military in Odesa, Kyiv and Lviv also made hedgehogs to be distributed to strategic locations. In Kyiv, hedgehogs from WWII were brought out of a museum and used at a roadblock.
The hedgehog is not generally anchored to prevent movement, as it can be effective even if rolled by a large explosion. Its effectiveness lies in its dimensions, combined with the fact that a vehicle attempting to drive over it will likely become stuck (and possibly damaged) through rolling on top of the lower bar and lifting its treads (or wheels) off the ground.
Industrially manufactured Czech hedgehogs were made of three pieces of metal angle (L 140/140/13 mm, length 1.8 metres (5 ft 11 in), weight 198 kilograms (437 lb); later versions: length 2.1 metres (6 ft 11 in), weight 240 kilograms (530 lb)) joined by gusset plates, rivets and bolts, or welded together into a characteristic spatial three-armed cross with each bar at right angles to the other two, this pattern forming the axes of an octahedron. Two arms of the hedgehog were connected in the factory, while the third arm was connected on-site by M20 bolts. The arms were equipped with square “feet” to prevent sinking into the ground, as well as notches for attaching barbed wire.
